MHT Inspextor Node-90-CCUV and Node-Mini offer a seamless and intelligent solution for powering and controlling Somfy Sonesse 30 RS485 24V shade motors. This system simplifies the integration of smart shades into any space, providing both manual and automated control options.
Simplified Power and Discovery
Each MHT Node efficiently supplies 24V power for up to four Somfy Sonesse 30 shades. A key feature of the Inspextor system is its automatic shade discovery. When powered on, each shade connected to a Node is instantly recognized, streamlining the setup process significantly.
Flexible Control Options
Once discovered, shade positions can be precisely adjusted through various methods:
- Manual Control: Utilize intuitive devices like the MHTi WallSwitch for direct, hands-on control of your shades.
- Automated Control: For enhanced convenience and energy efficiency, the system seamlessly integrates with occupancy sensors. These sensors, connected to any MHT Node within your network, can automatically adjust shade positions based on room occupancy, optimizing comfort and light levels.
Networked Intelligence

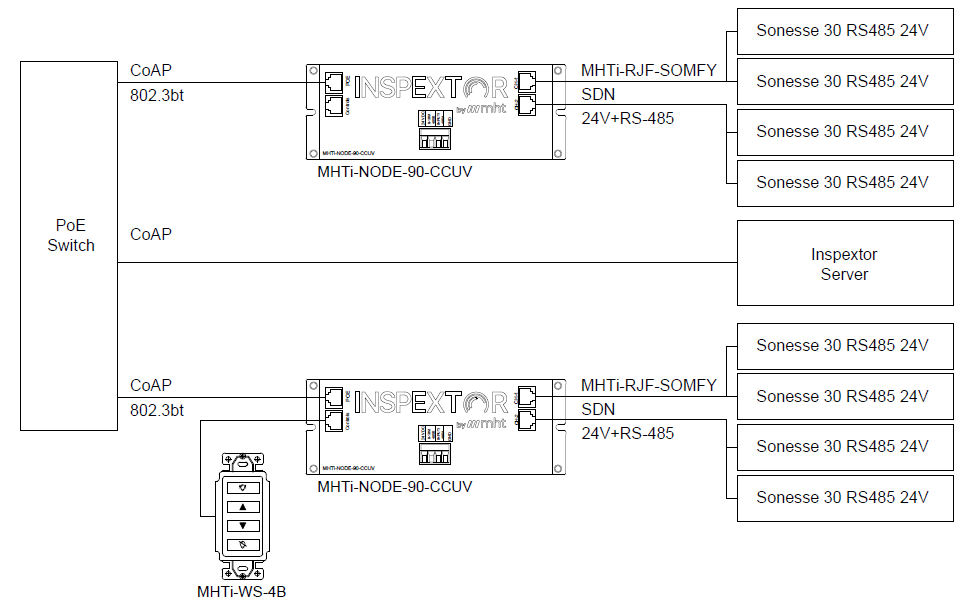

The MHT Inspextor system leverages a robust ethernet network for inter-Node communication. Each MHT Node is conveniently powered via a Power over Ethernet (PoE) switch port, simplifying wiring and installation. This networked approach means that a single wall controller can effortlessly adjust the positions of any shade across the entire network, offering unparalleled flexibility and centralized control.
For instance, the Node-90-CCUV, equipped with two actuator outputs, allows for the connection of two Sonesse 30 shades to each output. The RS485 interface is readily available at both connectors, utilizing the Somfy Digital Network (SDN) protocol to facilitate both shade discovery and precise position adjustments.
With MHT Inspextor, you gain a powerful, intelligent, and flexible system for managing your Somfy Sonesse 30 shades, enhancing comfort and efficiency in any environment.
Configuration
For the Node-90-CCUV there is a cccv value to select the Somfy load type. And there is a cuv value to set the output voltage for the shade motor. Set the configure
- cccv 18
- cuv 27
Cable Adapter Options
To connect the Somfy shades to the Node, MHT offers two cable adapter options:
- MHTi-RJF-SOMFY: This cable connects to the Somfy shade connector and is extended to our Node's channels using a standard CAT5 or CAT6 cable.
- MHTi-RJM-SOMFY: This version connects directly to our Node's channel and is extended to the Somfy shade connector using a 16-4 or 18-4 cable with mating connectors.
The color options for the RJF/RJM mating connector (which connects with the motor) are available upon request.
