Product Introduction: MHTi-RJM and MHTi-RJF

An Introduction: MHTi-RJM and MHTi-RJF

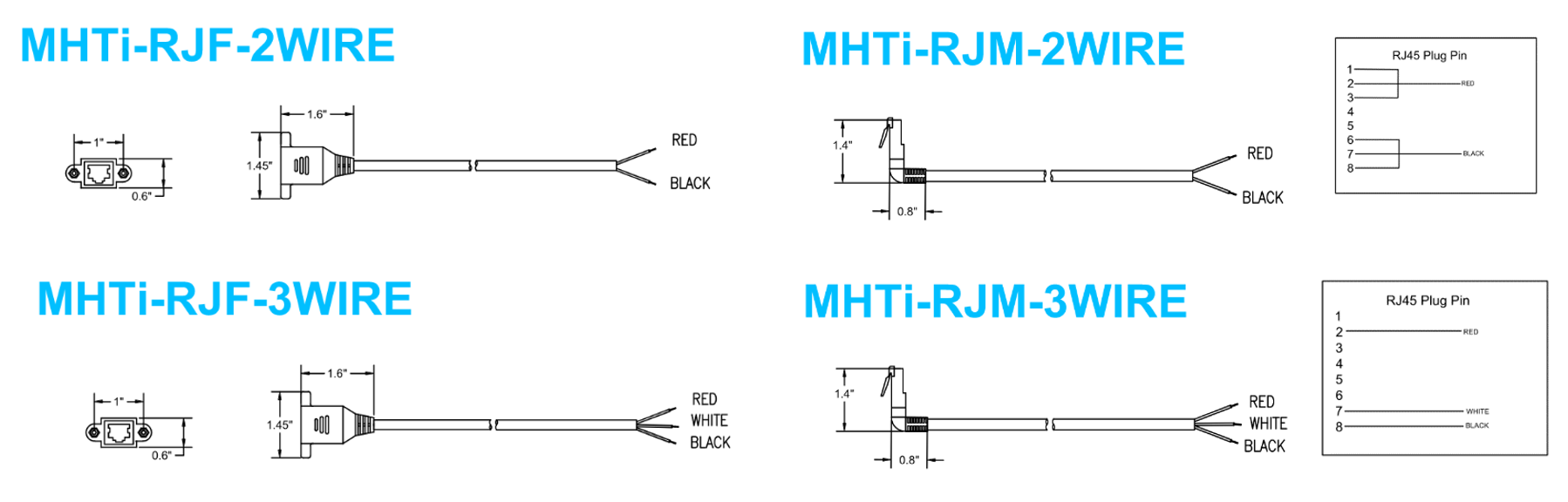

The MHTi-RJM and MHTi-RJF product series provide a very simple method of assuring secure and low-profile terminations of both lighting and control devices to the Control ports and Channel ports of the MHTi-NODE-90. The RJM connector is an extremely low-profile factory terminated cable that provides confident factory back device end termination mitigating node end wiring faults.

The RJF allows the flexibility of utilizing twisted pairs from node and prefabricating device end wiring on many low voltage control devices. This ability to prefabricate low voltage and control devices and proper ceiling coordination can allow installers to lean on factory terminated cabling to mitigate wiring faults.

In the diagrams below you will find some information about the Use Case for each product. This will help Installers and project managers visualize the installation procedure and how these products work together to create a repeatable process.

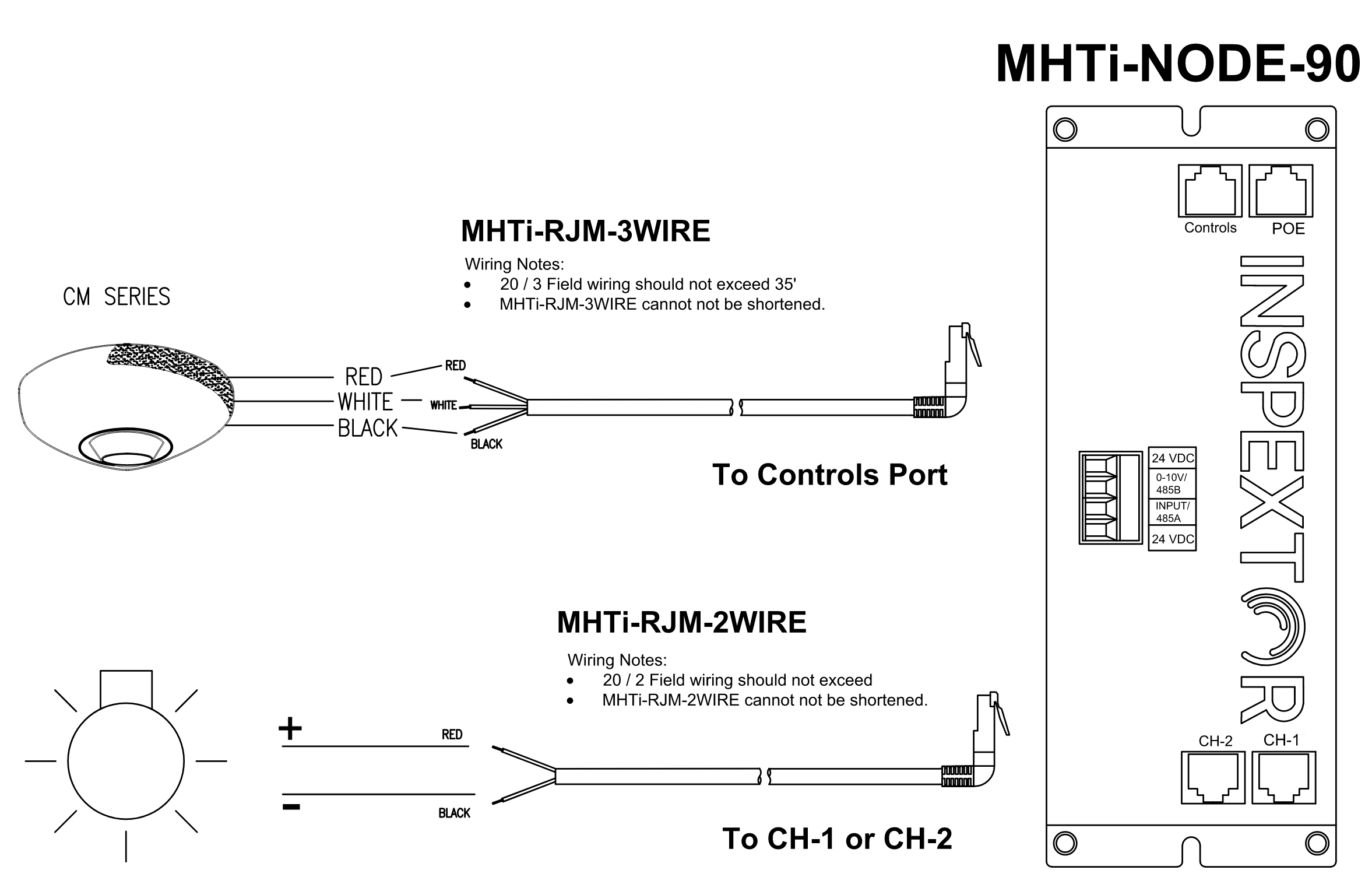

RJM USE CASE

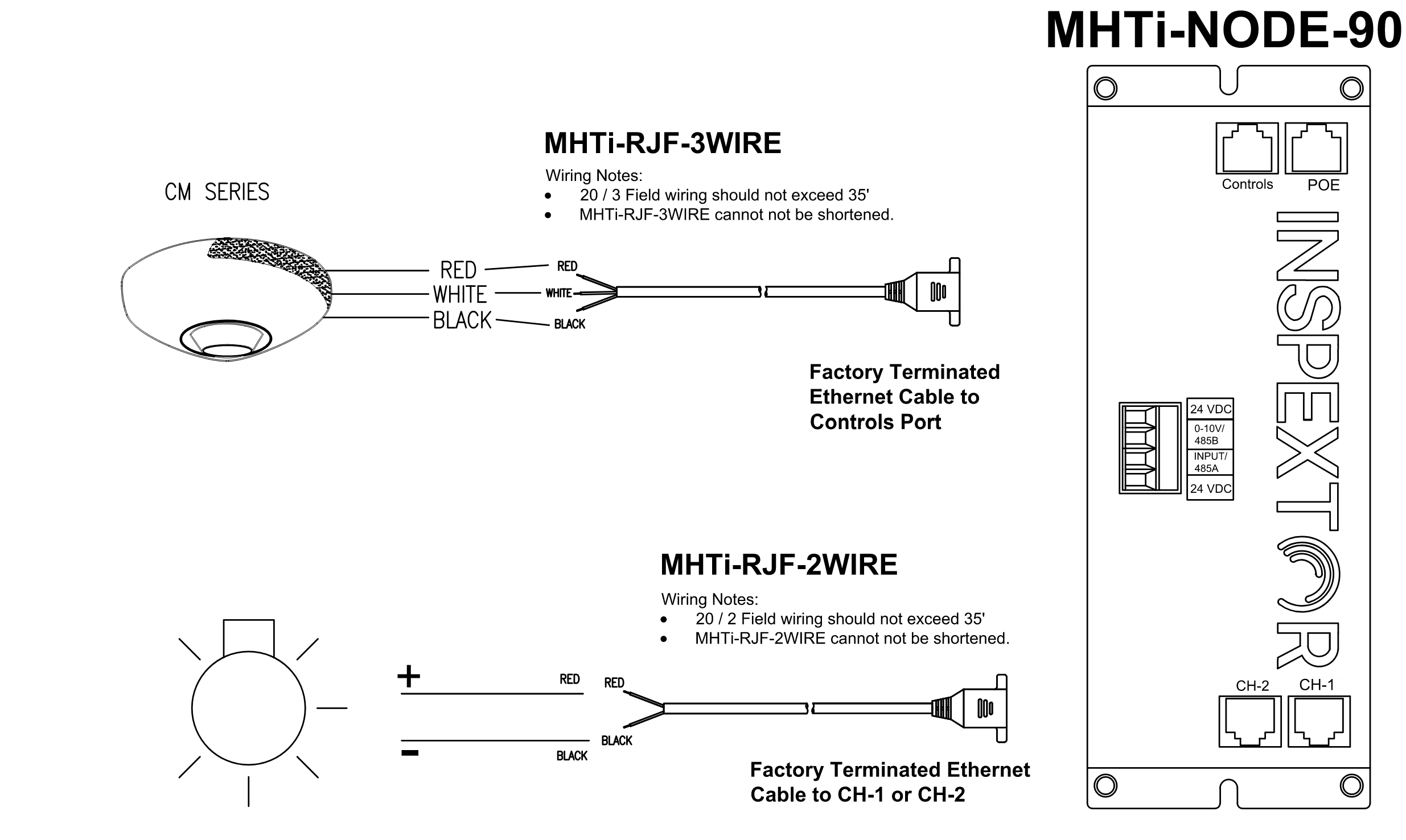

RJF USE CASE
