An Introduction: MHTi-NODE-90
The MHTi-NODE-90 is the latest device that MHT Technologies has rolled out (pictured below). Each node has a series of features defined by the full product number. The MHT-NODE-90 serves as an interface between the Inspextor Server and the control devices (i.e., Lights, RS485 Devices, and Occupancy Sensors). The MHTi-NODE-90 also provides short protection and fault detection to protect during the installation process for confident user installations. (For Product Specific Sheets Please see the Attachments below)
Product Number Description:

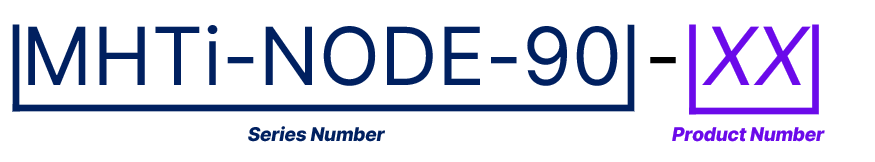

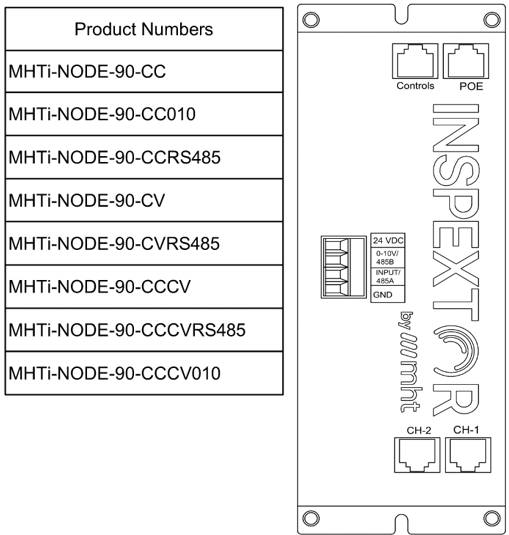

The MHTi-NODE-90 is a product series that provides designers and installer the ability to source the exact features needs of the clients needs. These number can be seen defined below with a diagram defining the position of the product number.
- CC – Constant Current Driver installed on CH1 and CH2
- CC010 - Constant Current Driver installed on CH1 and CH2. The 0-10V controls installed on the spring cage clamps.
- CCRS485 - Constant Current Driver installed on CH1 and CH2. The RS485 Controls installed on the spring cage clamps.
- CV – Constant Voltage Driver installed on CH1 and CH2
- CVRS485 - Constant Voltage Driver installed on CH1 and CH2. The RS485 Controls installed on the spring cage clamps.
- CCCV – Selectable Driver installed on CH1 and CH2
- CCCV010 – Selectable Driver installed on CH1 and CH2. The 0-10V controls installed on the spring cage clamps.
- CCCVRS485 - Selectable Driver installed on CH1 and CH2. The RS485 Controls installed on the spring cage clamps.
MHTi-NODE-90 Port Description:
- POE Port- This is the power port of the node. Plug the RJ-45 cable from the POE switch into the POE port to power the 90W node driver.
- Control Port- All control devices should be directly plugged into the control port of the node. Control devices include Sensors and wall switches.
- Output1- This port is in front of the POE Port. The first light fixture is to be plugged into this output port to power the luminaire.
- Output2- This port is in front of the control port. The second light fixture is to be connected to this output port to send power to the luminaire.
