Inspextor Webpage Structure
The Inspextor software was designed with user experience in mind. It utilizes a prominent vertical navigation system to allow users to quickly navigate through the system. It also utilizes a modularized system of panels on each page to clearly define the structures of data and its use case. The subsection below will introduce those features. In future sections we will refer to these by there designators labeled below

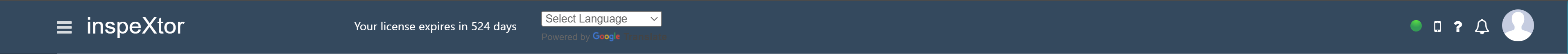

Page Header

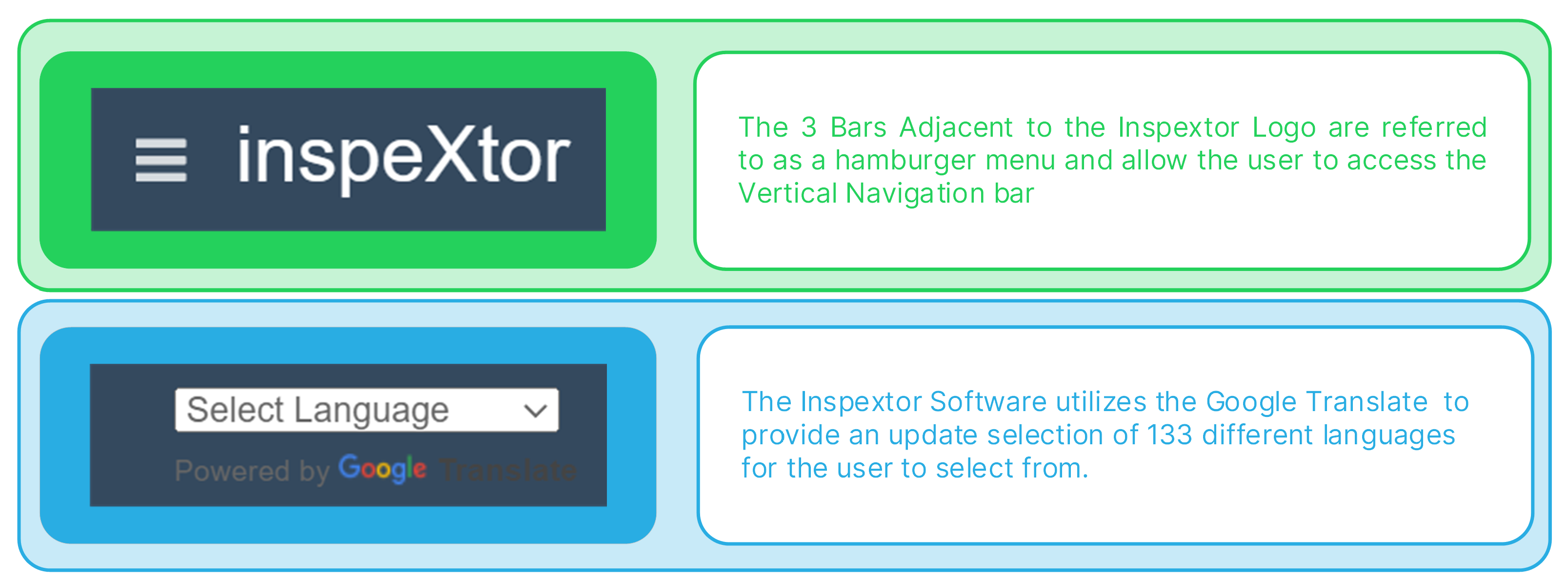

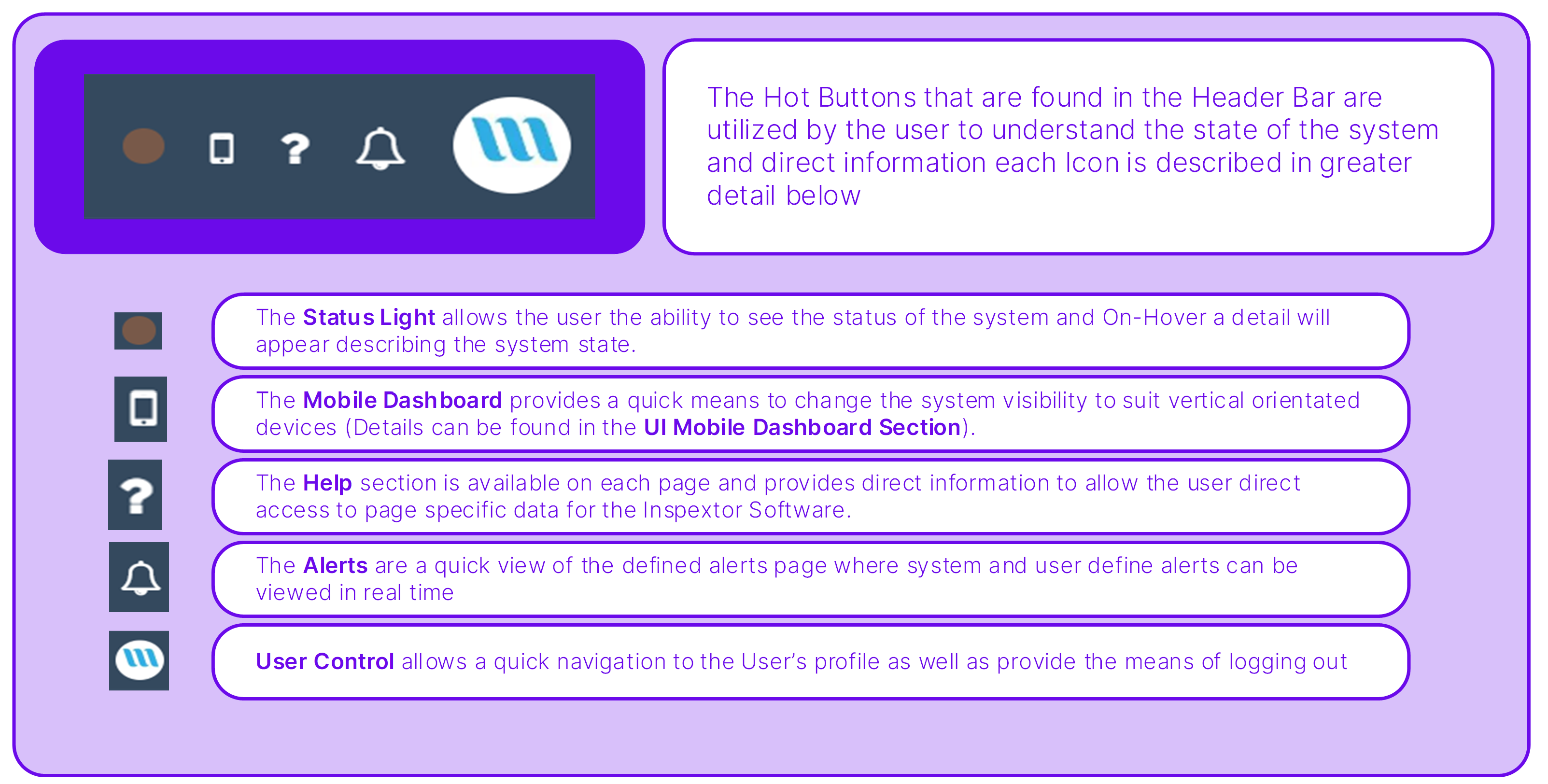

The Page header as pictured above is present on each page as the user navigates through the software providing the user with important access to service impacting information in the Hot Buttons section while providing a means of translation into different languages.

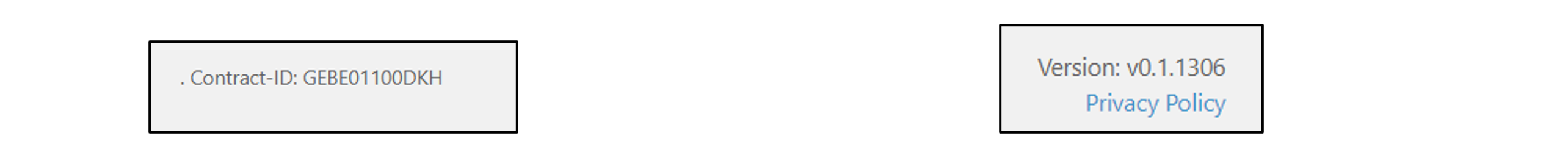

Page Footer
The Page footer as pictured above is present on each page the data present while marginally less important provides much needed support content when reaching out to the MHT Support Team with question. The Contract ID is what the team utilizes to tie your installation to the license and the version is the Version Instance installed on your MHT Inspextor Appliance.
Vertical Navigation Pane
The Vertical navigation pane provides the main structure of the Inspextor software. Web pages are sorted into each Navigation Tab based on User-Centric perceived setting. In the displayed example the Remote Control Tab is located under the Controls tab providing a means of grouping these pages and functions for future development.
