Introduction
Dedicated to enhancing user and installer experiences, MHT Technologies creates guides that simplify the sales, design, deployment, and turnover of our products. Our latest effort comes in a product guide for our CM9 and CM11 Sensors. The CM9 and CM11 are multi-sensors capable of providing accurate and near real time data about the occupancy of a space. As we continue to unlock the full potential of these innovative multi-sensors, stay tuned for upcoming enhancements and updates designed to further streamline your experience and success with our Inspextor-based solutions.

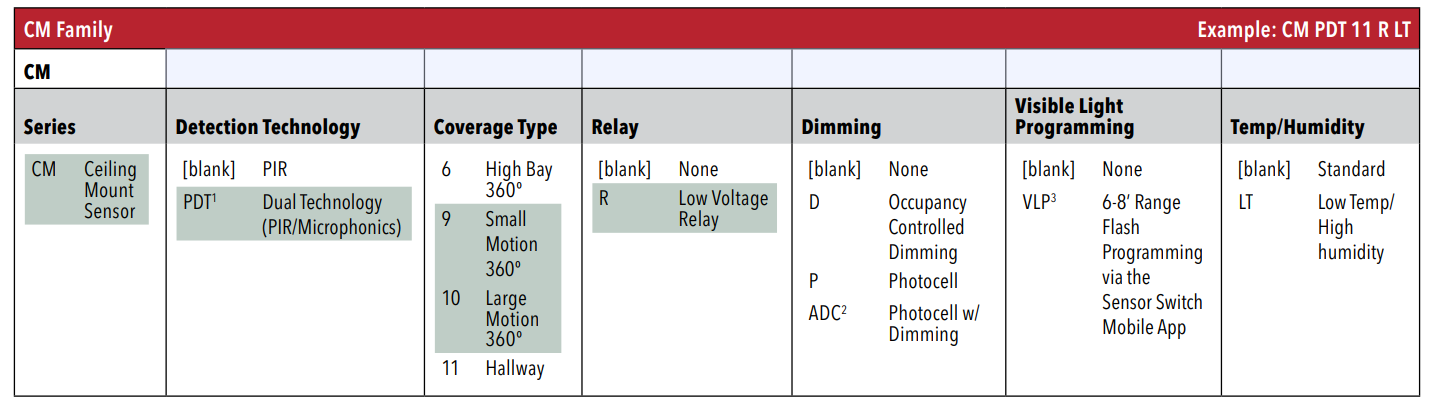

Ordering Numbers
Design Direction

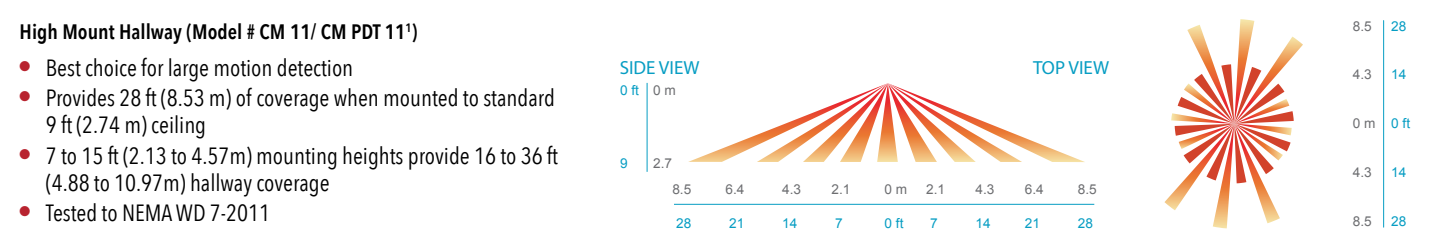

Attached below are the coverage patterns associated with the sensors listed part name. please note the difference in the coverages with the DT designation vs Non DT designation.
MHTi-SENS-CM9
MHTi-SENS-CM11
MHT CM9/CM11 Installation and Configuration
During the installation process the installation will require sensor settings modification this can be done with at 24 Volt power supply before installation or this can be done during unit power up during installation.

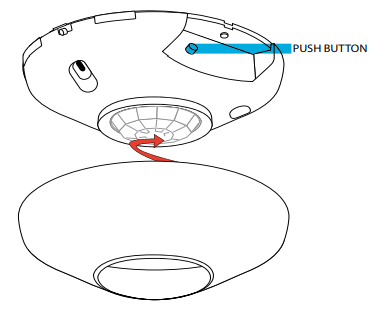

The Installer will need to access the button shown below:
Occupancy time delay
The occupancy time delay default value is 7.5 min change it to 30 sec. here is how you will do it.
- Press the configuration button twice.
- Wait for 2 blinks (This will confirm your function access)
- Press configuration button once. (This will select option 1) at 30 seconds
Minimum On time
The Minimum On time default 15 mins change it to 0 sec.
- Press Configuration button 10 times (back to back without any pause)
- Wait for 2 blinks on sensor (This will confirm your function access)
- Press Configuration button one time. (This will select option 1) at 0 Mins
